Technical Specifications of Vigor120
|
|
Hardware Interface |
ADSL |
1x RJ-11 Port |
| LAN |
1x RJ-45 10/100 Mbps with Auto-sensing and Auto-MDI-X |
| ADSL Compatibility |
ANSI T1.413 Issue 2 |
| ITU-T 992.1 G.dmt |
| ITU-T 992.2 G.lite |
| ITU-T 992.3 ADSL2 G.dmt.bis |
| ITU-T 992.5 ADSL2+ |
| Annex L (READSL) |
| Annex M |
| ATM Protocol |
PPPoE / PPPoA Relay (PPPoA to PPPoE Bridging) |
| RFC-2684 / RFC-1483 Multiple
Protocol over AAL5 |
| RFC-2516 PPP over Ethernet |
| RFC-2364 PPP over AAL5 |
| PPPoE Pass Through from LAN |
| Transparent Bridge for MPoA |
| Supports 4 PVC |

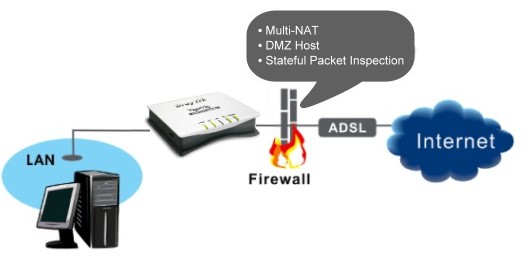

| Firewall Features |
Multi-NAT, DMZ Host, Port-redirect
/ Open Port |
| Stateful Packet Inspection (SPI) |
| DoS / DDoS Protection |
| User-configurable IP Packet
Filtering |
| Network Features |
IGMPv2 Proxy |
| DHCP Client / Relay / Server |
| SNTP Client |
| Call Scheduling |
| DNS Cache / Proxy |
| UPnP |
| Static Route |
| Content Filtering |
URL Keyword Blocking (Whitelist
and Blacklist) |
| Java Applet, Cookies, Active
X, Compressed, Executable, Multimedia File Blocking |
| Time Schedule Control |
| Network Management |
Web-based User Interface (HTTP) |
| CLI (Command Line Interface,
Telnet) |
| Administration Access
Control List |
| Configuration Backup /
Restore |
| Build-in Diagnostic Function |
| Firmware upgrade via TFTP /
FTP / HTTP / TR-069 |
| Logging via Syslog |
| TR-069 |
| Temperature
|
Operating : 0°C ~ 40°C |
| Storage : -25°C ~ 70°C |
| Humidity |
20% ~ 90% (Non-condensing) |
| Max. Power |
9 Watt |
| Dimension |
L162 * W192 * H33 (mm) |
| Power |
9V 500mA |
